MLX90640 IR Array Thermal Imaging Camera 32×24 Pixels 55° Field of View I2C Interface 3.3V/5V Compatible with Raspberry Pi (ESP32) STM32 @XYGStudy (MLX90640-D55 Thermal Camera)
Product details
| Management number | 215122483 | Release Date | 2026/04/12 | List Price | $26.52 | Model Number | 215122483 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

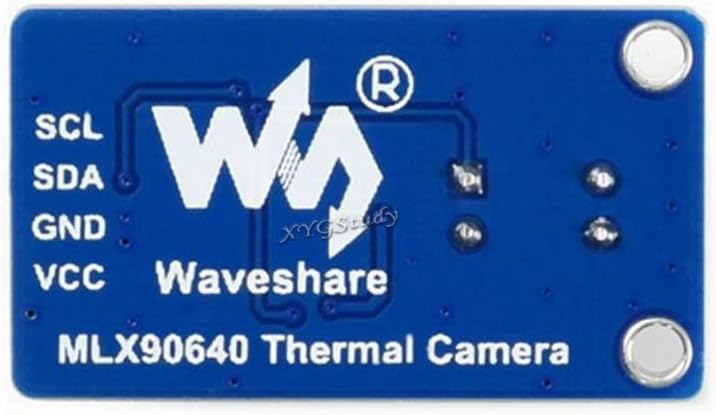

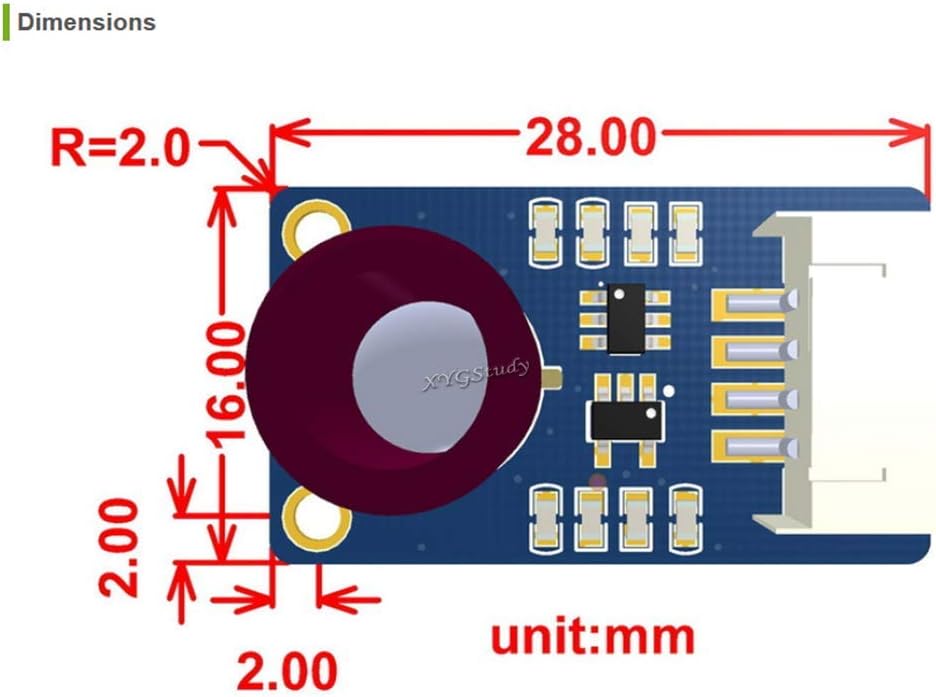

Specifications Operating voltage: 3.3V/5V Operating current: ＜23mA Communication interface: I2C (address 0x33) Field of view (Horizontal×Vertical): 55°×35° (narrow angle FOV, suit for long range measuring) Operating temperature: -40℃～85℃ Target temperature: -40℃～300℃ Resolution: ±1℃ Refresh rate: 0.5Hz~64Hz (programmable) Dimensions: 28mm×16 mm Mounting hole size: 2.0mm Applications High precision non-contact temperature measurements IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security monitoring, intrude/movement detection Pinouts In the case of working with MCU: VCC ↔ 3.3V / 5V GND ↔ GND SDA ↔ MCU.I2C data line SCL ↔ MCU.I2C clock line Package Contains (Weight: 0.006 kg) MLX90640-D55 Thermal Camera x1 PH2.0 4PIN wire x1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
- Part Number: MLX90640-D55 Thermal Camera
- This is a 32×24 pixels, 55° field of view, IR array thermal imaging camera, communicating via I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.

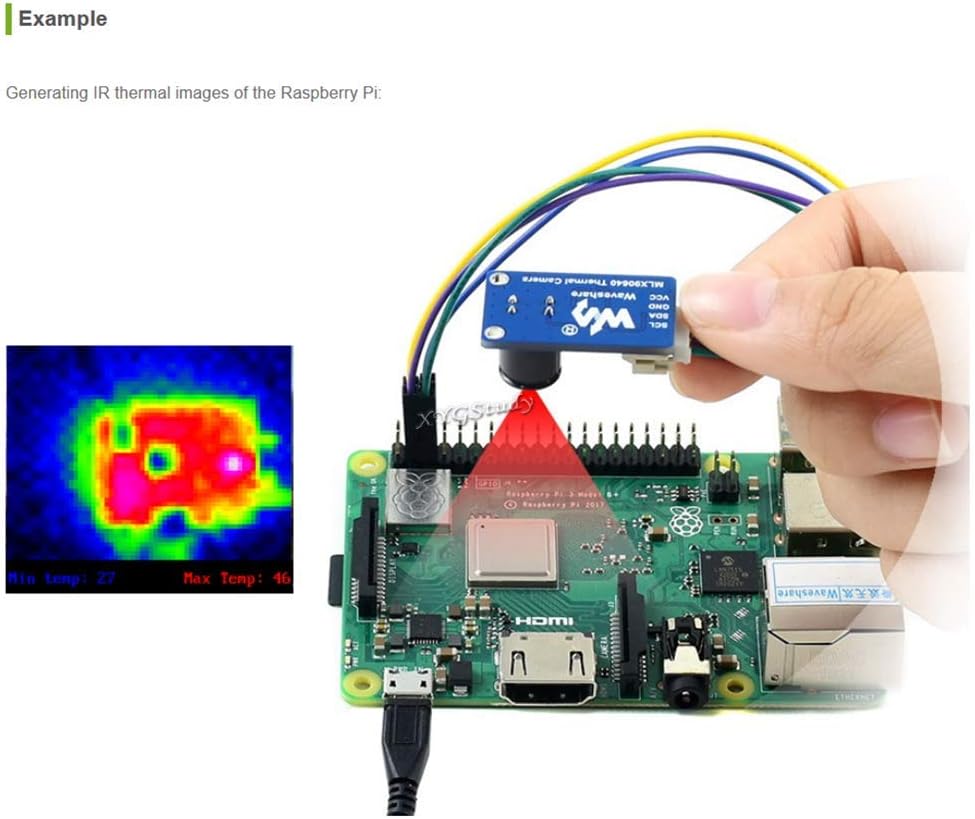

- By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.
- Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels, Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate)
- Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate, Onboard voltage translator, compatible with 3.3V/5V operating voltage, Comes with development resources and manual (examples for Raspberry Pi/Arduino(ESP32)/STM32)
| UPC | 783103371962 719209007726 |
|---|---|
| Brand | XYGStudy |
| Platform | Android |
| Model Name | MLX90640-D55 |
| Manufacturer | XYGStudy |
| Model Number | MLX90640-D55 |
| Processor Socket | Socket P |
| Compatible Devices | Raspberry Pi, Arduino (ESP32), STM32 |
| Memory Clock Speed | 1 MHz |
| Compatible Processors | Raspberry Pi (BCM2835, BCM2836, BCM2837, BCM2711), ESP32 (Xtensa dual-core 32-bit LX6 microprocessor), STM32 (various Arm Cortex-M cores) |
| RAM Memory Technology | DDR3 |
| Memory Slots Available | 1 |
| Graphics Card Interface | Integrated |
| Item Dimensions L x W x H | 1.1"L x 0.63"W x 0.63"H |
| Main Power Connector Type | 4-pin |
| System Bus Standard Supported | SATA 3 |
