Larcele 19mm Latching Push Button Switch with Led Light,Waterproof DIY On Off Switch,12V,Black,Flat Head,Ring,5 Pieces JSANKG-09 (Light Red)
Product details
| Management number | 215615042 | Release Date | 2026/04/12 | List Price | $14.00 | Model Number | 215615042 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

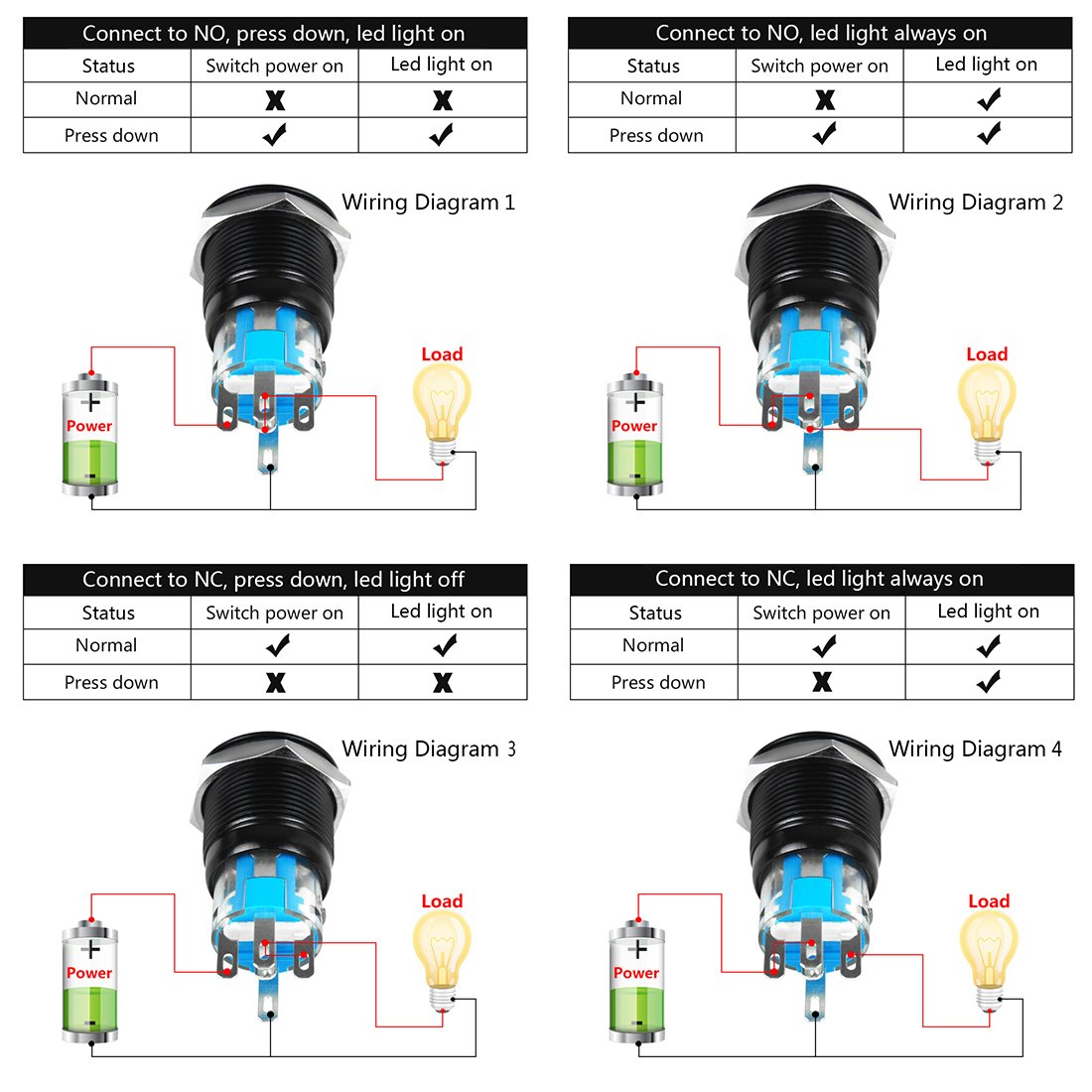

Mounting hole: 19mm Protection level: IP65, IK10 manipulation Type: Latching. Light Color: Blue, Red,Green Package included: 5 pieces Latching Switch The terminals are small, need to be very careful when soldering the wires on to them. Recommended solder within 3 seconds Note: 1.Installation instruction and wiring diagram are not included in the package. 2.Professional installation is highly recommended.
- Material: Aluminium Zinc alloy, Plastic, Electric Parts.
- Rated current: 5A; rated voltage:AC 250V; led light voltage:12V. Recommend install with the wire connector(KGWC-02).
- A latching switch is a switch that maintains its state after being activated. A push-to-make, push-to-break switch would therefore be a latching switch - each time you actuate it, whichever state the switch is left in will persist until the switch is actuated again.
- Operating temperature: -20~+55 ℃. Contact resistance: less 50mΩ. Insulation resistance: over 1000 MΩ.
- Most often latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light). Recommend install with the wire connector.
| UPC | 681385025125 |
|---|---|
| Color | Light Red |
| Model | JSANKG-09 |
| Brand Name | Larcele |
| Switch Type | Push Button |
| Manufacturer | Larcele |
| Actuator Type | Push Button |
| Material Type | Aluminum |
| Current Rating | 5 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button, Ring |
| Operating Voltage | 12 Volts |
| International Protection Rating | IP65 |
