Digital Length Meter Counter, Encoder for Edge Banding Machine, Single Wheel/2 Relay Output, Support Alarm Settings, for Measure The Length of Conveyor Belts, Assembly Lines, Counting Machines

Name: High-precision meter meter Counting range: 0-999999 Input signal: pulse signal after electric shock signal Control mode: relay output Units: meters, inches, feet, decimeters, centimeters, millimeters Encoder type: 400P Digital display: LED 6-digit digital tube double row display Electric shock load: AC220V, 10A, DC24V, 5A Wheel diameter: 95mm/3.74 inches Length per revolution: 0 cm/11.81 inches Counting accuracy: 0.01 Working temperature: 0±50℃/32-122℉ Relative humidity: 45%-75% Product size: 18*11*13 cm/7.09*4.33*5.12 inches Gross weight: 1.87 kg/4.12 lbs

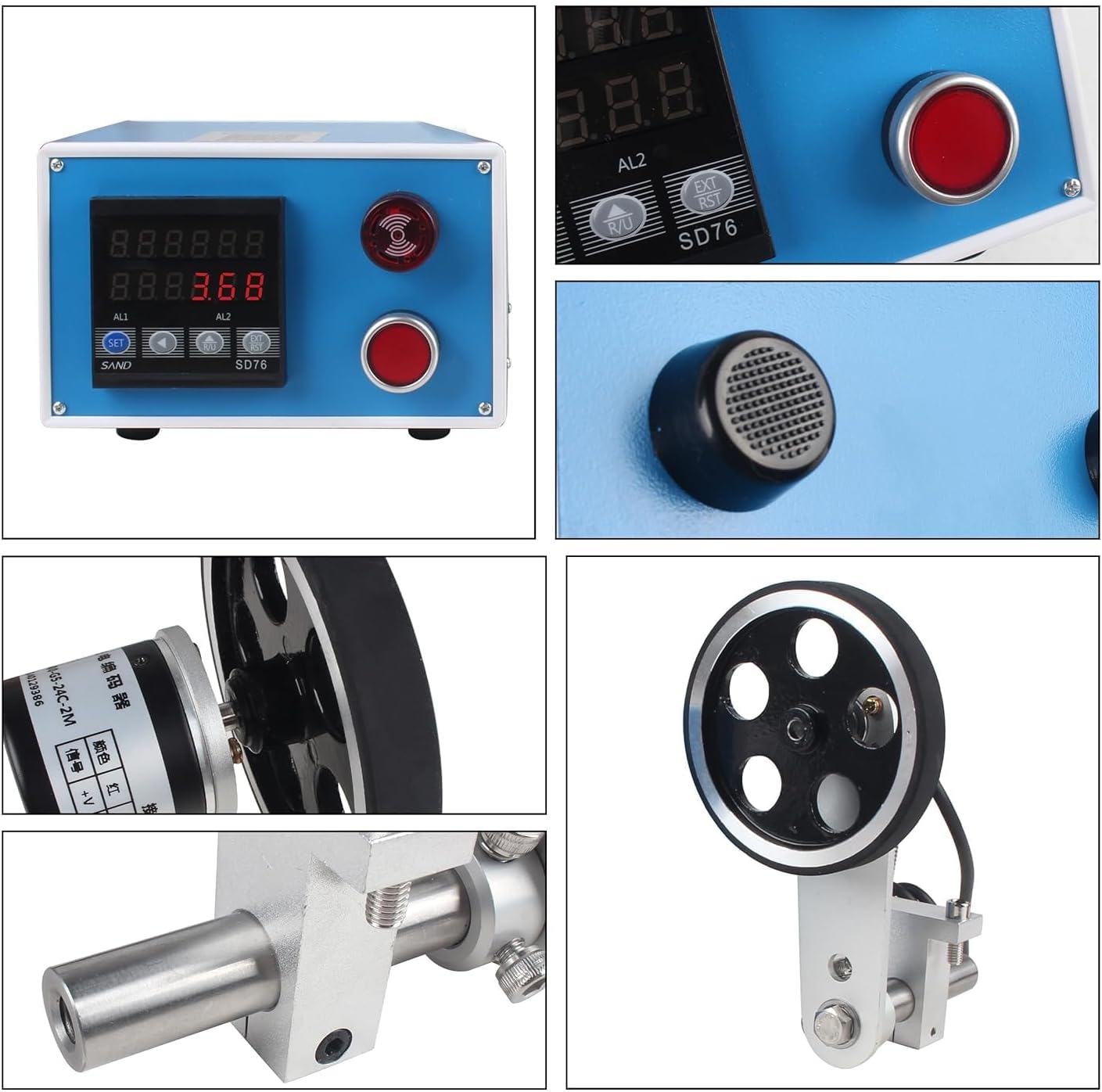

• High-quality materials: The bracket is made of stainless steel, and the wheels are made of rubber, which is wear-resistant, anti-skid, and rotates noiselessly; the display screen is made of precision electronic components, which has a long service life and is not easily damaged.
• Specifications: Measurement units: feet, inches, meters, yards can be switched and the magnification and parameters can be set; Measuring length: 0-999999, with encoder 400rpm to ensure stable operation and accurate counting
• Support alarm settings: The meter counter has alarm settings, you can connect to the alarm, and you can set the preset value in advance. When the value is reached, the alarm will sound (this model does not have an alarm)
• Memory Function：After the power is restored, the meter still retains the value before the power-off, which brings security and convenience to work.

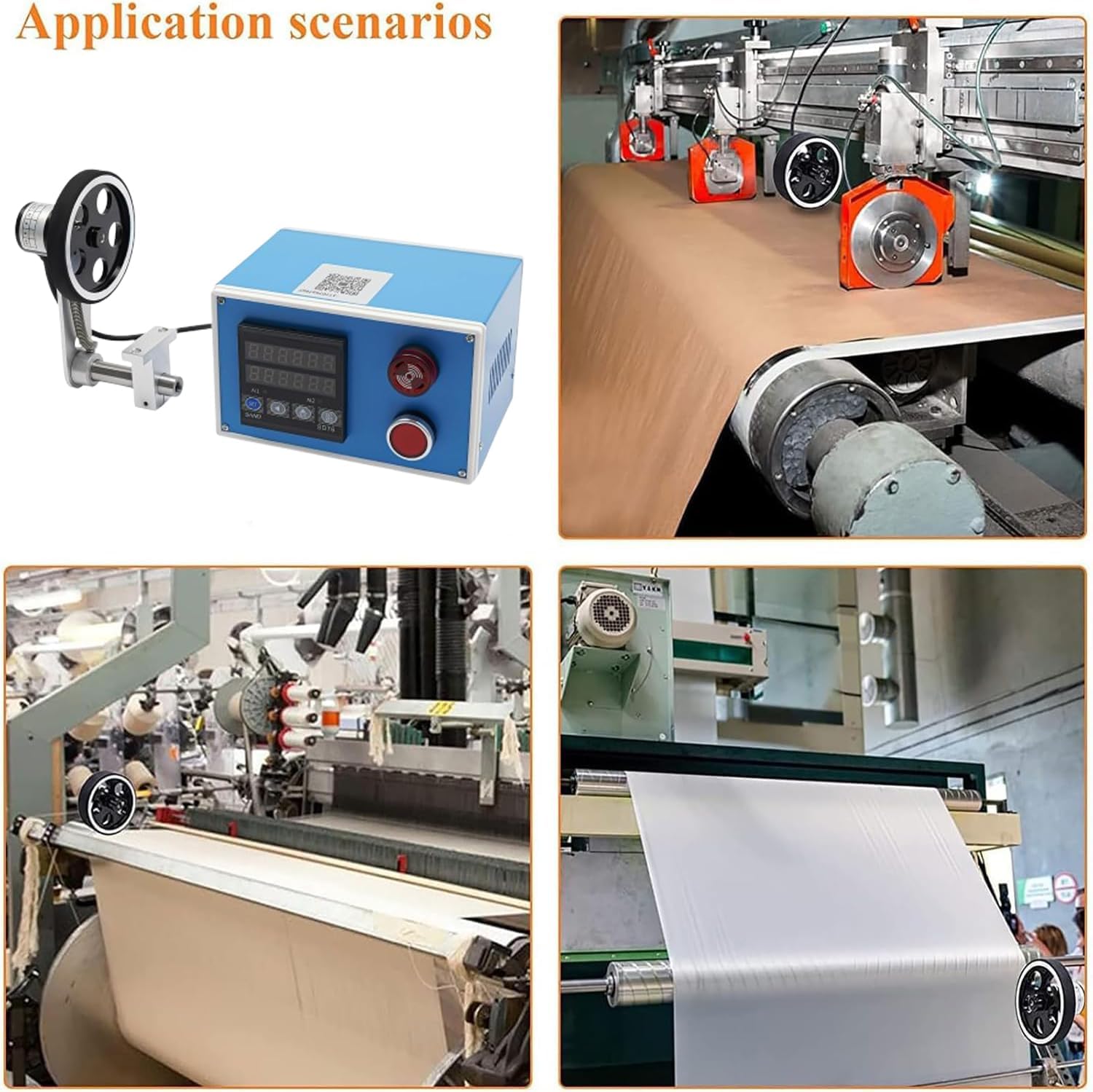

• Wide application: This product is an industrial length measuring instrument that can be used to measure the length of conveyor belts, assembly lines, counting machines, punches, cloth, posters, wires, etc. Used in textile, paper, printing and other industries
